Features

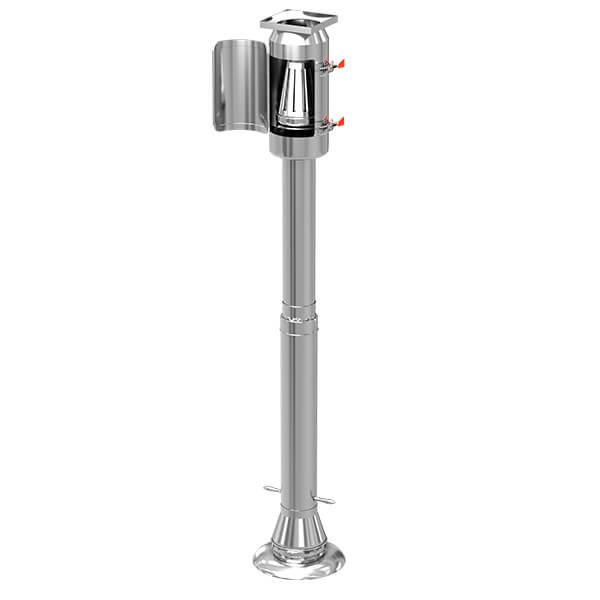

The Long Body model is perfectly suited for commercial spaces with high ceilings, offering an expandable structure up to 1910mm for stable and efficient installation without the need for additional ducts—saving both time and cost.
Its minimal and sleek design eliminates the use of spring balancers and guide rods, creating a cleaner appearance while simplifying the structure for easier cleaning and reduced maintenance.

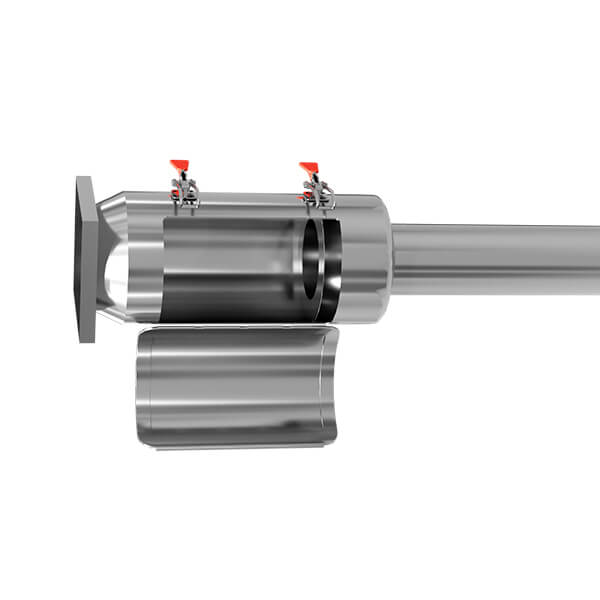

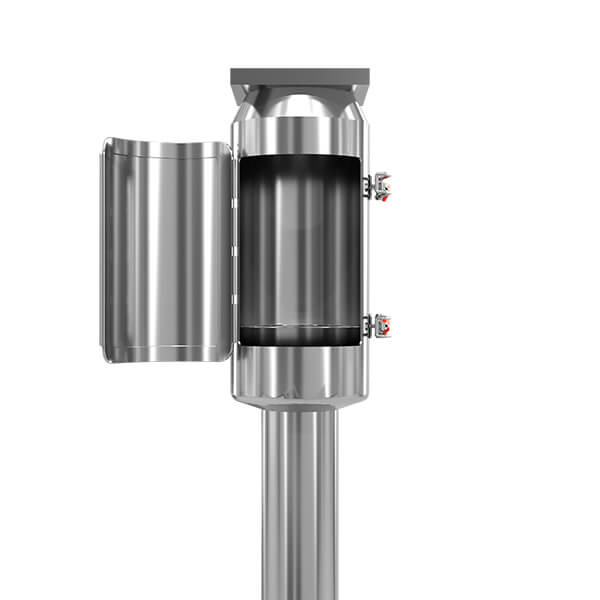

The filter is 50% smaller compared to previous models, maximizing internal space and enhancing overall efficiency.
Designed to simplify installation and maintenance while delivering clean aesthetics and space-saving innovation.
- Long Body Design for High Ceilings
- Minimal and Sleek Structure
- Compact Filter for Space Efficiency
| Length | With General Pipe: 49.21" (1275mm) / (Extended to 67.32" [1710mm])
With LongBody Pipe: 54.13" (1375mm) / (Extended to 75.19" [1910mm]) |
| Weight | With General Pipe: 23.14lb (10.5kg)
With LongBody Pipe: 24.25lb (11kg) |
| Material | SUS304 Stainless Steel |
| Airflow | 90 CFM |
| Surface Temperature | Max 661 °F |
| Grease Collector Capacity | 150 ml |
| Pipe Detachment | Possible |
| Additional Options | Trumpets, Light Cover |
