Features

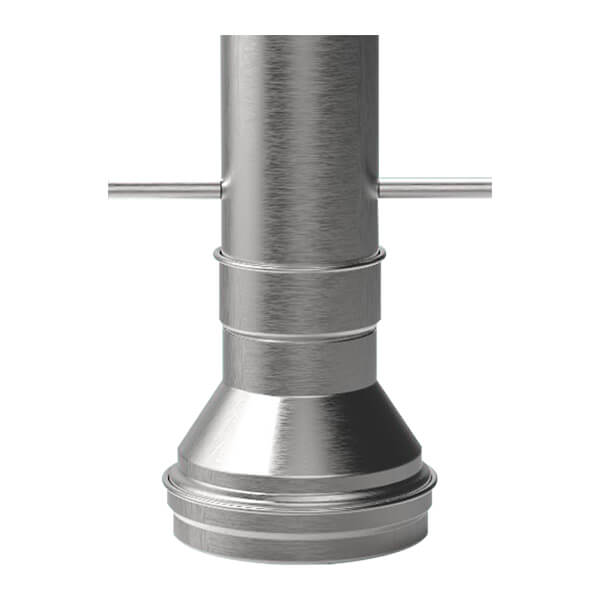

Up to 1910mm, ensuring stable installation even in stores with high ceilings. No need for additional ducts, simplifying installation and reducing costs.
A blend of efficiency and minimalism, removing spring balancers and guide rods for a clean, sophisticated appearance. Simplified structure for easier cleaning and reduced maintenance costs.

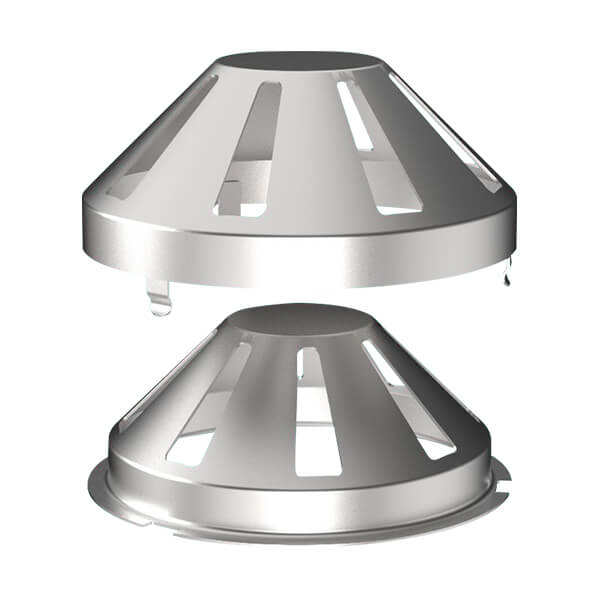

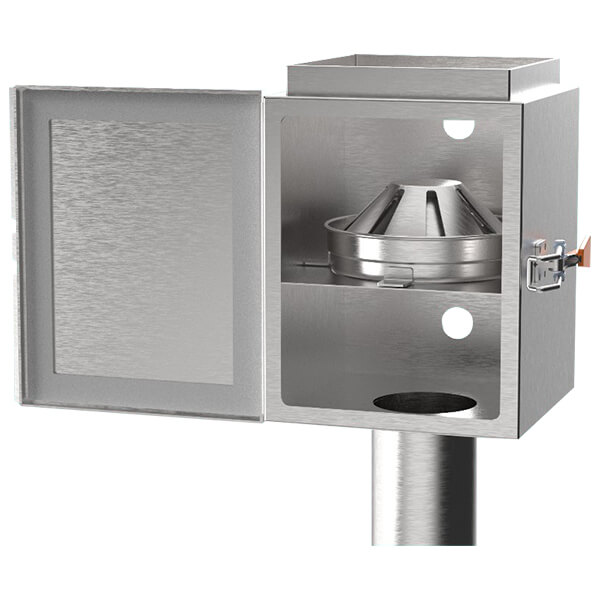

The filter is 50% smaller than previous models, maximizing internal space utilization. Designed to integrate seamlessly with fire safety systems.
The Long Body model is designed for high-ceiling commercial spaces, offering an expandable structure for stable installation without extra ducts. Its sleek and minimal design reduces maintenance and simplifies cleaning. The compact filter maximizes space efficiency and facilitates easier fire safety system integration.
- Expandable Structure
- Minimal Design
- Space-Efficient Filter
| Length | With General Pipe: 46.45" [1180mm] / (Extended to 63.58" [1615mm])
With LongBody Pipe: 50.39" [1280mm] / (Extended to 71.45" [1815mm]) |
| Weight | With General Pipe: 24.25lb [11kg]
With LongBody Pipe: 25.35lb [11.5kg] |
| Material | SUS304 |
| Airflow | 90 CFM |
| Surface Temperature | Max 664 °F |
| Grease Collector Capacity | 150 ml |
| Pipe Detachment | Possible |
| Additional Options | Trumpets |
